Construction Detailing

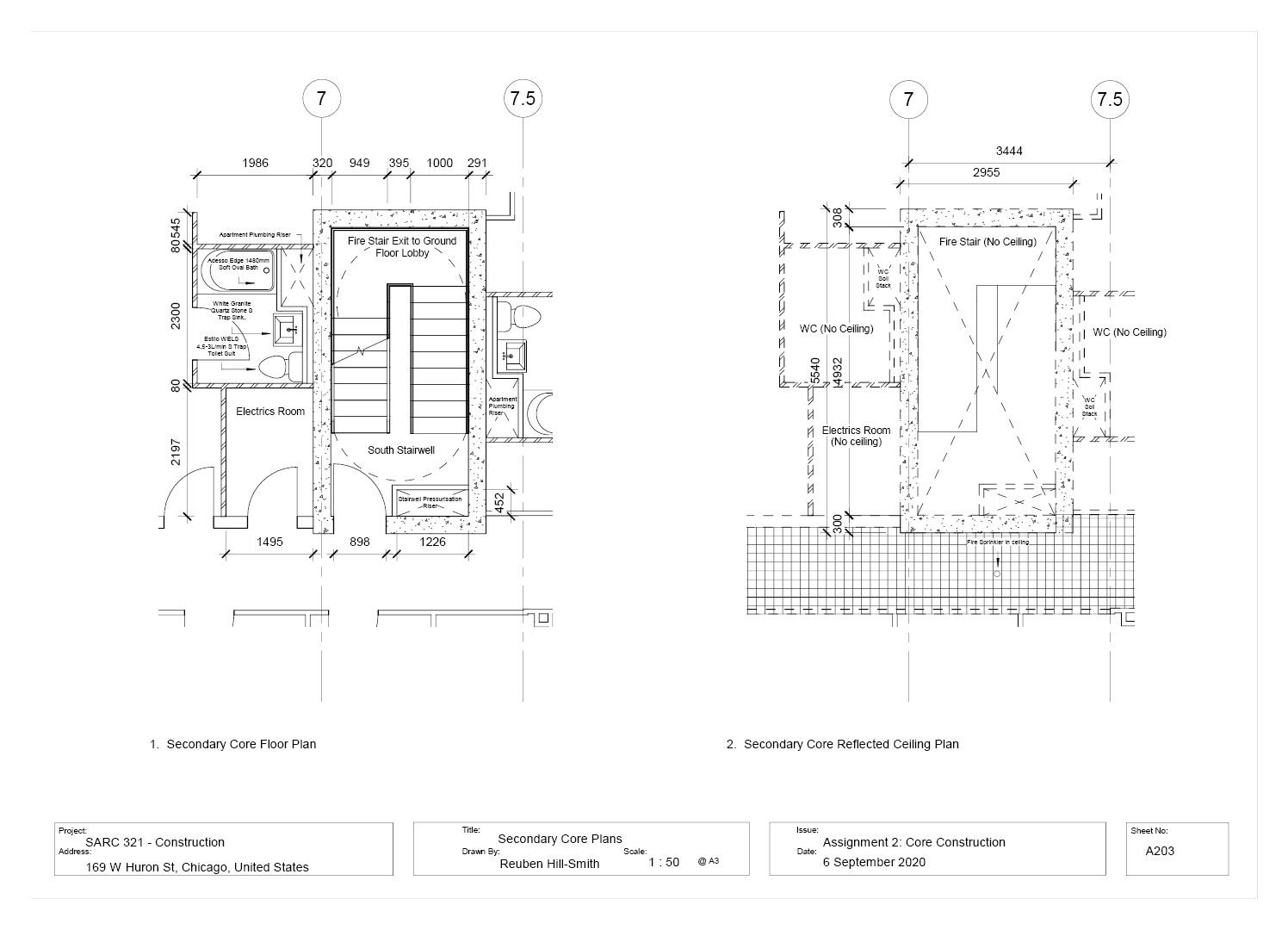

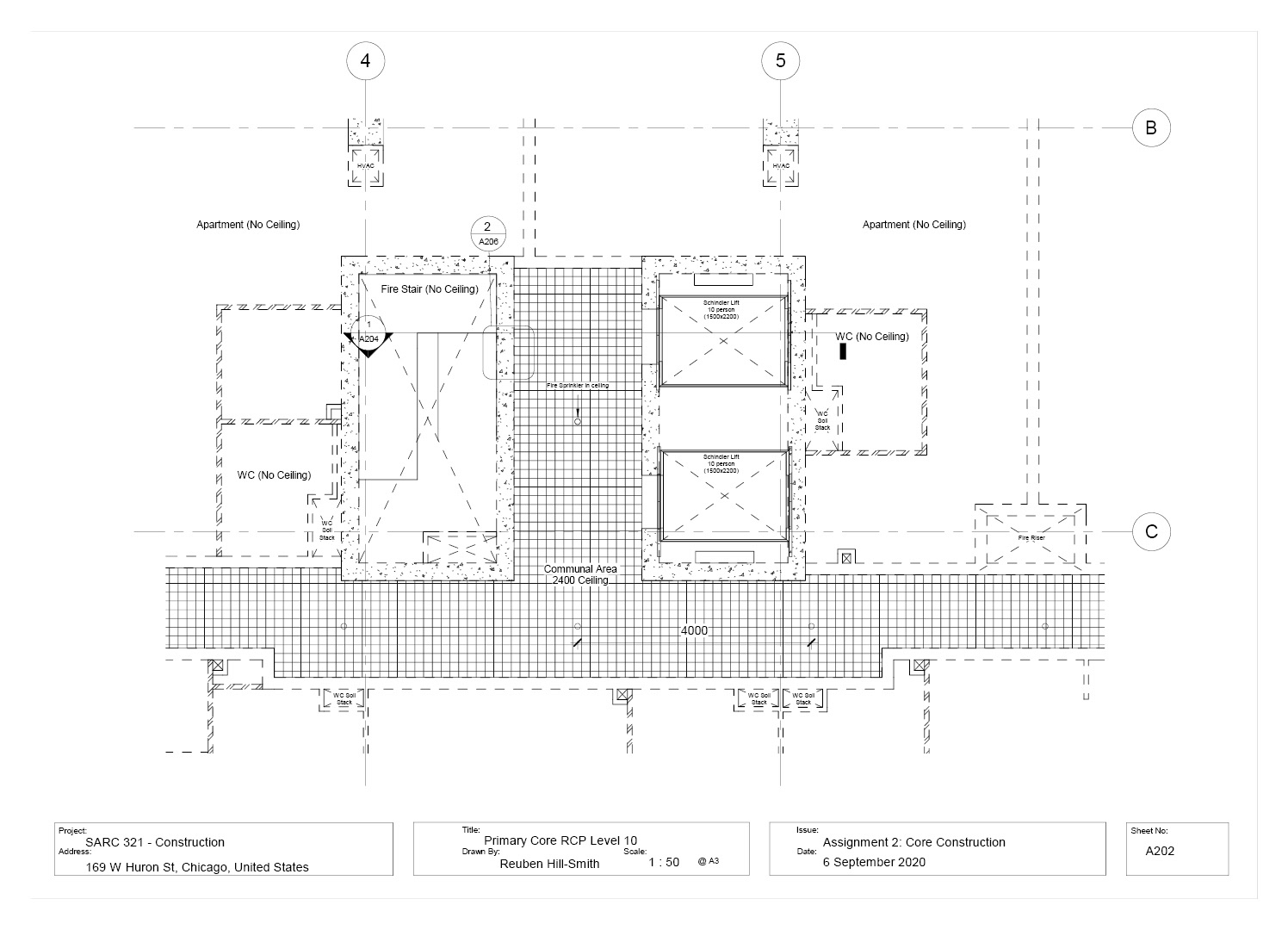

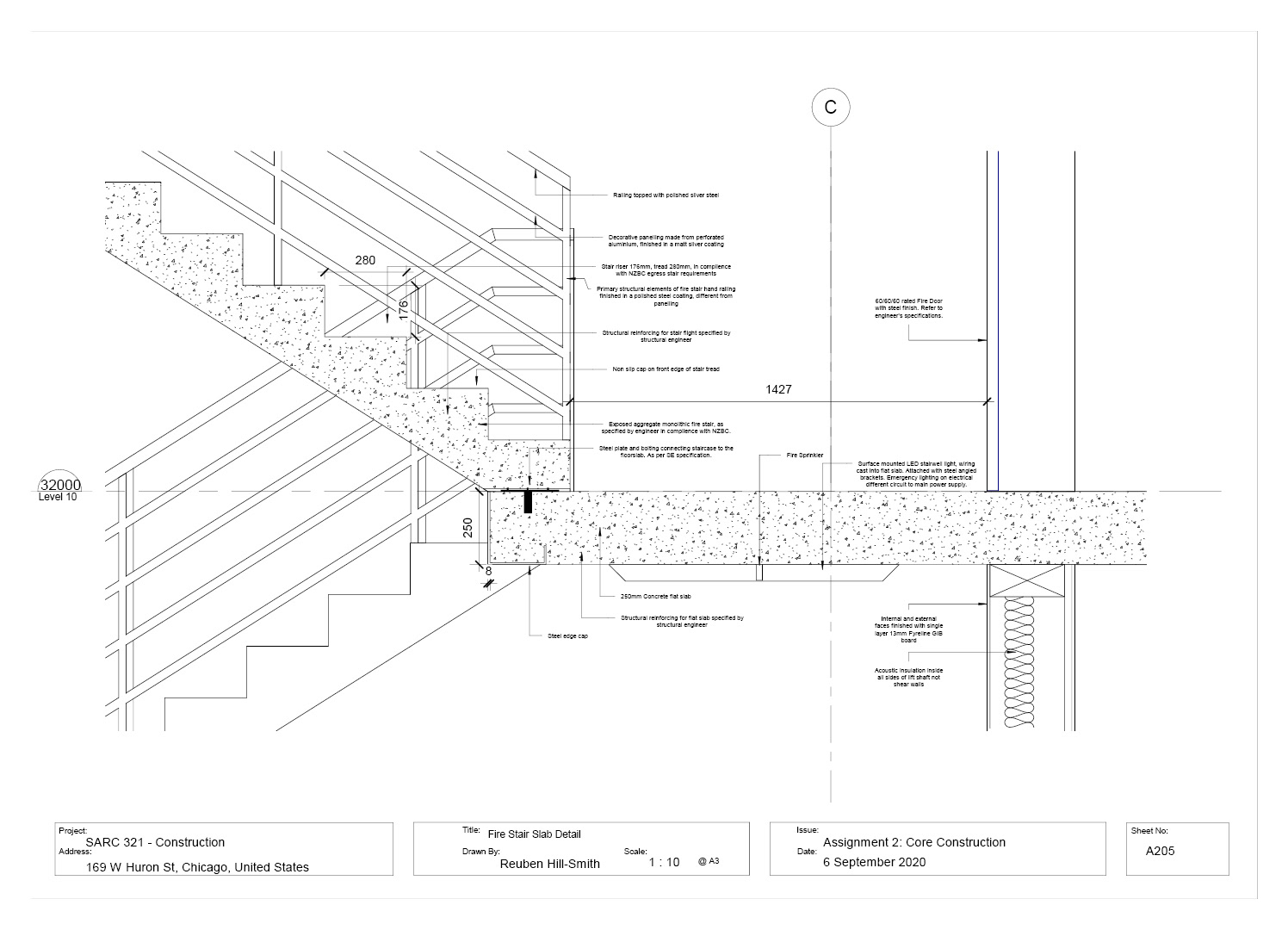

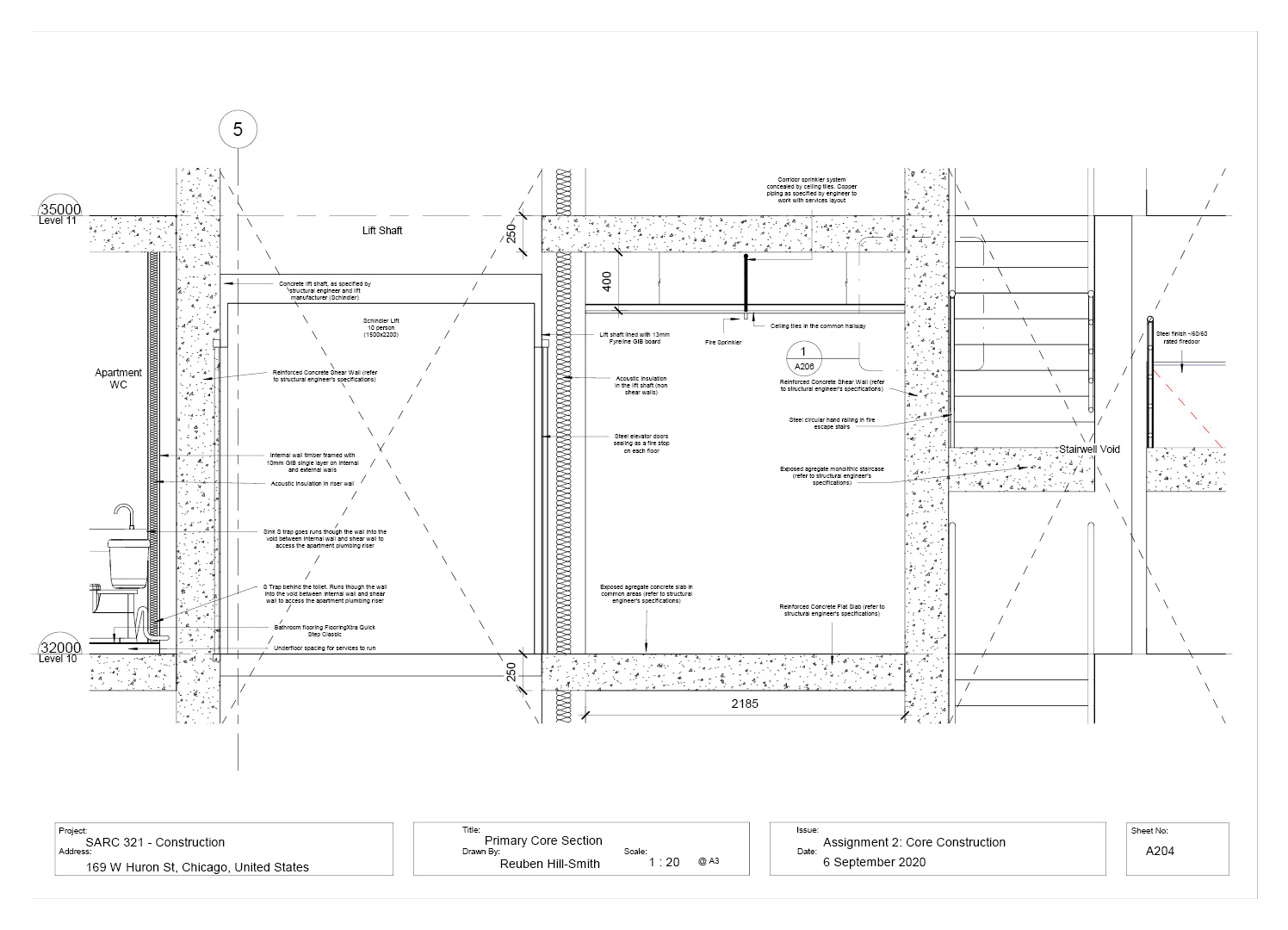

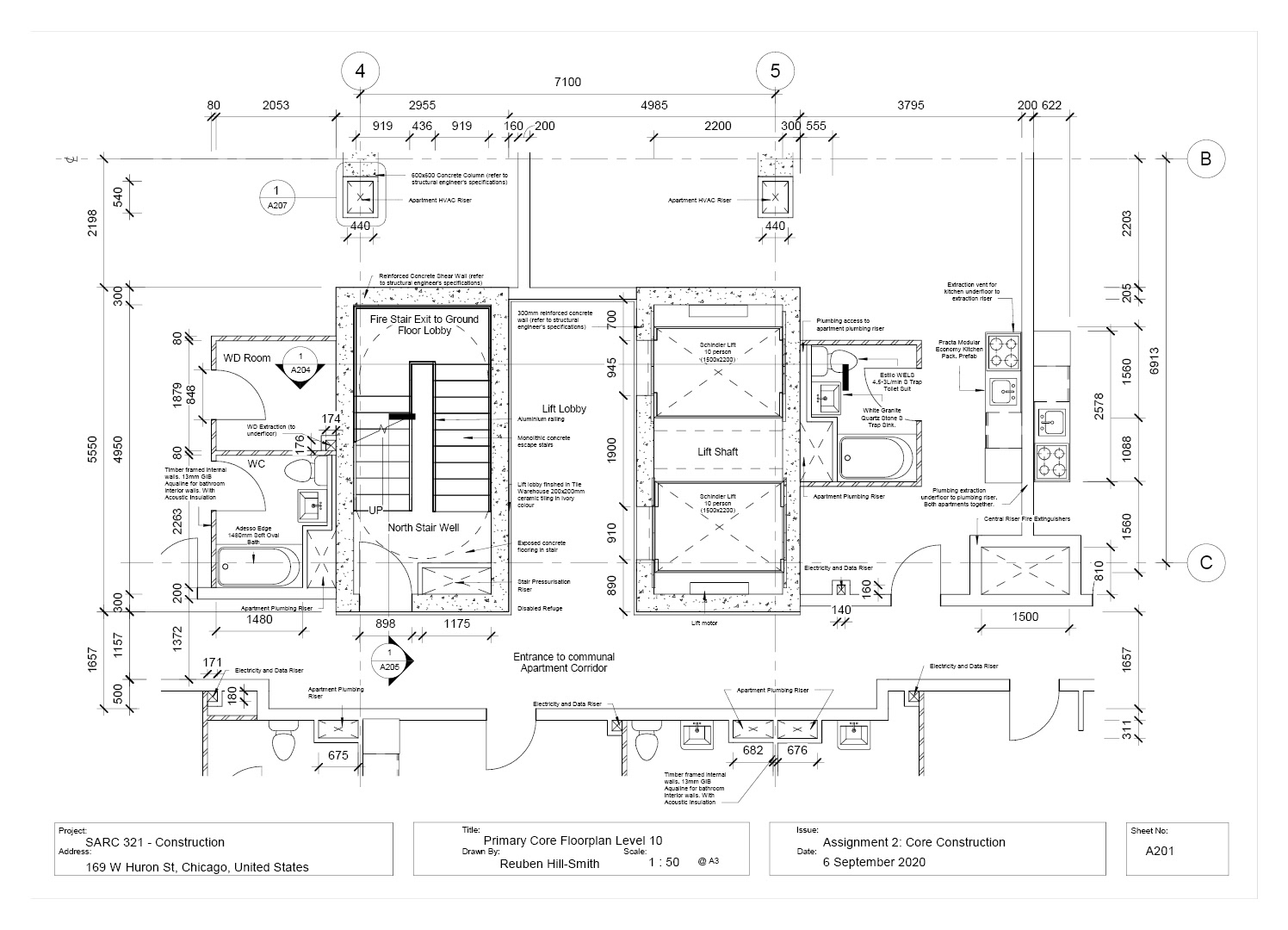

These are excepts from a drawing set for Marlowe Apartments; A highrise apartment building in Chicago. Detailing a core. The core plan and section views shown, observing formal drawing requirements. The drawings below were drawn in Autodesk Revit.
